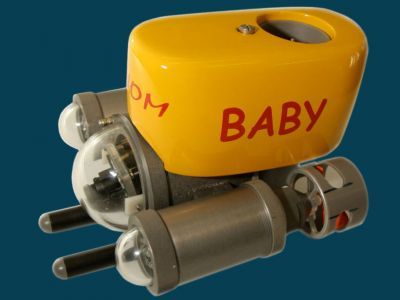

The ROV Gnom Baby is a really micro sized vehicle that has all main features inherited from larger underwater systems. The vehicle combines low coast with the full set of Gnom capabilities.
ROV technical specifications:
- 3 magnetically coupled thrusters
- Operating depth up to 50 m
- Horizontal speed up to 2 knots
- Ultra thin flexible Kevlar umbilical cable (3mm), up to 50m long
- Color camera PAL CCD 1/3", 480 TV Lines, 0.3 lux
- Two clusters of ultra-bright LEDs
- Depth sensor, auto-depth mode
- Compass, auto-guide mode
- Data display
- Power supply 100-240VAC, 12VDC
- Total power consumption 120Watt
- Full system packed in two case ('Baby')
- ROV weight: 1.5 kg, total system weight: 11 kg
- ROV dimensions: 210x185x150mm
