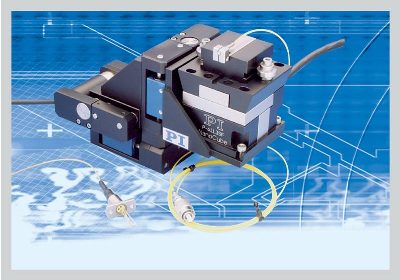

The XYZ Precision Positioning System for Automated Fiber Alignment has been exclusively designed for high-precision requirements in automated fiber alignment and photonics component characterization applications. The system is based on a rapid XYZ piezo scanner with sub-nanometer resolution and a motorized “coarse” positioner with 50 nm resolution and it is possible to accomplish XYZ alignment tasks with superior precision in seconds.
Key Features
The key features of the XYZ Positioning System are:
- High speed xyz piezo scanner with 1 nanometer resolution
- Motorized positioning range to 25 mm, 50 nm resolution
- High performance controller for automated alignment available
- Complete device characterization in less that 1 s
- Stepper or servo motors * 100x100x100 µm piezo fine resolution
