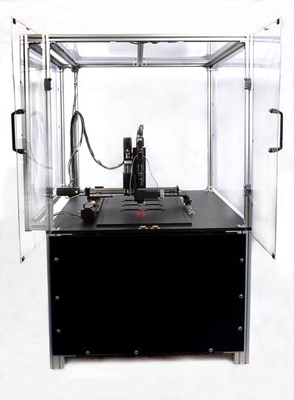

Automated Optical Inspection Systems from VISIONx INC

These systems are perfect for a wide range of applications including MicroElectroMechanical systems (for MEMS inspection or MEMS measurement), semiconductor & discrete device inspection and measurement.These are multi-processor based automated inspection systems that support concurrent image analysis and stage motion.

  • Complete, fully-contained, self-standing unit.
  • Full gantry configuration (i.e. the camera moves over the parts; the parts themselves do not move).
  • Available with high-speed 240 VAC servomotor motion system.
  • Available in a wide range of travels, short and long.
  • Available with application-specific camera / optics / illumination module.
  • Available with a resolution as fine as 0.1 micron.
  • Optional LASER module for laser profiling is also available.
  • Easy to use, easy to program, fully automated inspection system.
  • Inspection and measurement programs (i.e. "recipes") are easily created and modified using intuitive Graphical User Interface. Programs can be saved to disk and read-in later on.
