Curiosity, part of the National Aeronautics and Space Administration (NASA)’s Mars Science Laboratory mission, is a car-sized rover that landed in Gale Crater on August 5, 2012. Launched in 2011, it was the most advanced rover ever sent to Mars at the time.1-3

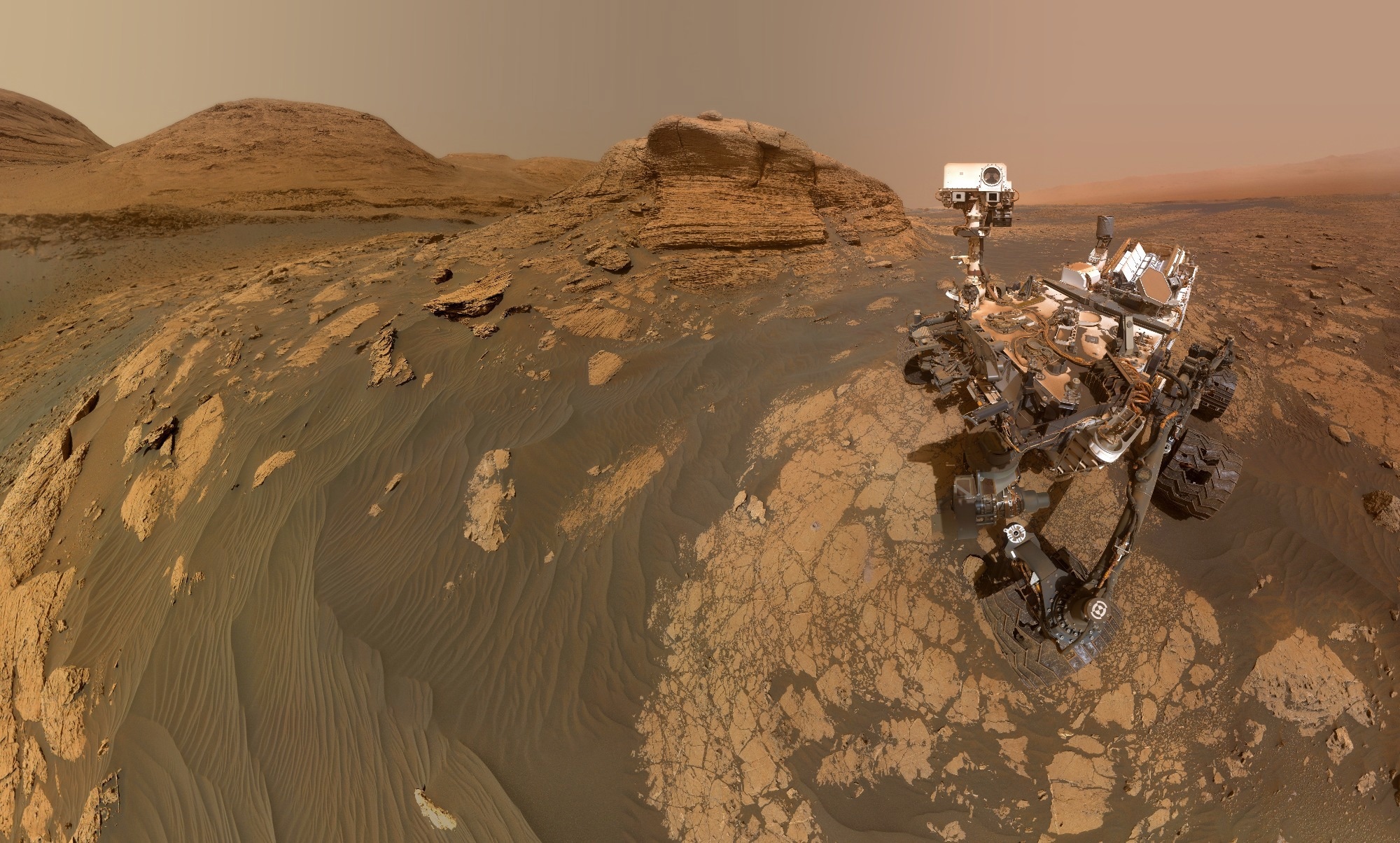

Image Credit: elRoce/Shutterstock.com
Its primary mission is to determine whether Mars ever offered conditions suitable for microbial life. To do this, Curiosity was designed to assess the biological potential of at least one target region, analyze the geology of the landing site, measure surface radiation in the Martian environment, and investigate planetary processes relevant to past habitability.1-3
Although Curiosity is not equipped to detect current life or fossilized microorganisms, it can evaluate three key conditions required for life: an energy source, essential chemical ingredients, and the presence of liquid water. In the early phase of its mission, Curiosity found chemical and mineral evidence suggesting that Mars once hosted habitable environments.1-3
The rover continues to explore the planet’s layered rocks to understand its ancient climate and conditions better. Outfitted with 17 cameras, a 7-foot robotic arm, a rock-zapping laser, and a drill for collecting powdered rock samples, Curiosity uses its suite of 10 scientific instruments to analyze Martian rock, soil, and atmosphere. Its ongoing discoveries continue to shed light on Mars’ potential to support life in the distant past.1-3
Why Are There Robots in Space?
An Overview of Curiosity Rover
Curiosity is a six-wheeled, nuclear-powered science laboratory roughly the size of a Mini Cooper, weighing 1,982 pounds (899 kilograms). It features redundant power distribution and computer systems, equipped with 4 GB of flash storage and a RAD750 processor. Its primary power source is a radioisotope thermoelectric generator, which provides approximately 110 watts of continuous electrical power.3-4
The rover also uses rechargeable lithium-ion batteries that store about 1,600 watt-hours of energy daily. This enables Curiosity to operate for around six hours each Martian day or sol, which is approximately 39 minutes longer than an Earth Day. The rover powers down for the remainder of the sol to allow its batteries to recharge.
To withstand the extreme Martian climate, Curiosity relies on an active thermal control system. This system uses a continuously circulating pumped fluid loop to regulate internal hardware temperatures, compensating for ambient temperatures that swing from -80 °C to 0 °C over the course of a sol.4
External components, such as cameras and actuators, are protected by warm-up heaters, which keep them above -50 °C to ensure operational reliability.
For communication, Curiosity is equipped with a low-data-rate X-band transceiver for direct communication with Earth, and a high-data-rate ultra-high frequency (UHF) transceiver that allows data to be relayed via Mars orbiters.4
NASA’s Curiosity Mars Rover Finds A Changing Landscape
The Rover Structure
Curiosity consists of several specialized components, each playing a critical role in the rover’s operations.
Head, Brains, & Neck: The rover’s onboard computers serve as its “brain,” responsible for processing data and managing functions. Its “head” and “neck”, technically known as the mast, provide a human-scale perspective, supporting seven of Curiosity’s seventeen cameras.3
Eyes: These cameras act as Curiosity’s “eyes,” helping scientists’ study and interpret the Martian landscape. Positioned on the mast, they offer a viewpoint like that of a person standing seven feet tall.
Mounted on what could be considered the rover’s “forehead” is a laser instrument that vaporizes rock surfaces from a distance to analyze their composition. This helps identify materials potentially formed in water, an essential clue in the search for past life.3
Ears and Voice: Curiosity “speaks” and “listens” using its radio antennas, transmitting large volumes of data back to Earth. These antennas function in tandem with those on orbiters, acting like short-range “walkie-talkies,” while the low-gain and high-gain antennas handle long-range communication.3
Using orbiters to relay messages offers a key advantage: they stay within view of both Earth and the rover longer than Earth-based antennas can, enabling faster and more efficient data transmission.3
Arm, Hand, and Body: The rover’s jointed robotic arm ends in a turret—its “hand”—equipped with tools such as a dust brush, drill, close-up camera, soil scoop, and two analytical instruments that help assess Mars’s past habitability.
The main body houses essential components, including scientific instruments and communications hardware—essentially Curiosity’s “vital organs.” This section also includes features like the sundial and an observation tray.3
Wheels and Legs: For mobility, Curiosity uses six durable wheels and a rocker-bogie suspension system that allows it to remain stable on rough terrain. Designed to land directly on its wheels, the rover can navigate Mars’s rocky surface with ease. Its four-wheel steering gives it excellent maneuverability across challenging landscapes.3
Download your PDF copy now!
Science Instruments
Curiosity’s suite of scientific instruments not only captures detailed images of Mars but also plays a central role in many of the mission’s most significant discoveries.
Mastcam: Mounted on the rover’s mast, Mastcam is a color imaging system that captures high-resolution photos and videos of the Martian surface. It supports landscape analysis and guides navigation and sampling operations.
The system consists of two cameras—Mastcam-34 (left eye) and Mastcam-100 (right eye)—with focal lengths of 34 mm and 100 mm, respectively. Its imaging capabilities are comparable to a 2-megapixel consumer digital camera, producing images at 1600 x 1200 pixels.
Resolution ranges from 2.9 inches per pixel at 1 kilometer to 150 microns per pixel at 2 meters. With 8 GB of onboard memory, Mastcam can store more than 5,500 raw images or record hours of HD video at 10 frames per second.5
Mars Hand Lens Imager (MAHLI): Located on the turret at the end of Curiosity’s robotic arm, MAHLI captures close-up, color images of rocks, soil, and dust at microscopic detail, down to features smaller than a human hair. It offers 1600 x 1200 pixel resolution, autofocus, and can also record 720p HD video. MAHLI’s optics allow it to focus on objects from as close as 18.3 mm to infinity, and it stores images using 8 GB of flash memory.5
Mars Descent Imager (MARDI): MARDI is mounted on the rover’s fore-port side and was designed to document Curiosity’s dramatic descent to the Martian surface. It captured color video of the landing site from above, producing up to 4,000 frames at 1600 x 1200 pixels and four frames per second. The footage provided a unique “astronaut’s view” of the touchdown.5
Alpha Particle X-Ray Spectrometer (APXS): APXS is a compact, cupcake-sized instrument located on Curiosity’s robotic arm. It measures the chemical composition of rocks and soil, sampling areas approximately 1.7 cm wide at a resolution of 13.9 microns per pixel. APXS can collect data during both day and night, with enhanced speed and accuracy compared to earlier versions.5
Chemistry and Camera (ChemCam): This instrument combines a laser, telescope, and remote micro-imager on the rover’s mast to analyze Martian materials from a distance. By firing a laser to vaporize rock or soil, ChemCam creates plasma that is then examined by a spectrometer inside the rover’s body. The emitted light reveals the material’s elemental composition, without the need for physical contact.5
Rover Environmental Monitoring Station (REMS): REMS serves as Curiosity’s onboard weather station. It tracks a variety of atmospheric conditions, including temperature, pressure, humidity, wind, and ultraviolet radiation. Operating autonomously for up to three hours per Martian day, it’s built to survive temperatures ranging from -130 °C to +70 °C. REMS provides long-term climate data critical to understanding Mars’s weather and environmental dynamics.5
Radiation Assessment Detector (RAD): Positioned on the rover’s deck, RAD measures high-energy radiation, including protons, heavy ions, neutrons, and gamma rays, both during the journey to Mars and on the surface. Roughly the size of a small toaster, RAD’s measurements help scientists evaluate the radiation environment and are essential for planning safe, crewed missions to the Red Planet.5
The Essential Role of Robotic Assistants in Modern Space Stations
Conclusion
In conclusion, NASA's Curiosity Rover is a groundbreaking robotic explorer designed to study Mars in detail, seeking to uncover clues about the planet's habitability.
Equipped with a wide array of scientific instruments, it has provided invaluable data about Mars' geology, atmosphere, and potential for life.
Through its advanced features, Curiosity continues to contribute to our understanding of the Red Planet, paving the way for future human exploration. Its ongoing mission remains essential for unraveling the mysteries of Mars.
References and Further Reading
- Mars Science Laboratory: Curiosity Rover [Online] Available at https://science.nasa.gov/mission/msl-curiosity/ (Accessed on 17 April 2025)
- Where is Curiosity? [Online] Available at https://science.nasa.gov/mission/msl-curiosity/location-map/ (Accessed on 17 April 2025)
- Mars Engineering: CURIOSITY [Online] Available at https://www.lpi.usra.edu/education/explore/LifeOnMars/activities/pdfs/CuriosityToolsSchematic.pdf (Accessed on 17 April 2025)
- Welch, R., Limonadi, D., & Manning, R. (2013). Systems engineering the curiosity rover: A retrospective. 2013 8th International Conference on System of Systems Engineering, 70-75. DOI: 10.1109/SYSoSE.2013.6575245, https://ieeexplore.ieee.org/abstract/document/6575245
- Science Instruments [Online] Available at https://science.nasa.gov/mission/msl-curiosity/science-instruments/ (Accessed on 17 April 2025)
