Industry-leading designer and manufacturer of edge AI solutions, AAEON, today introduced a new addition to its rich line of embedded AI systems based on the NVIDIA® Jetson Orin™ platform, the BOXER-8645AI.

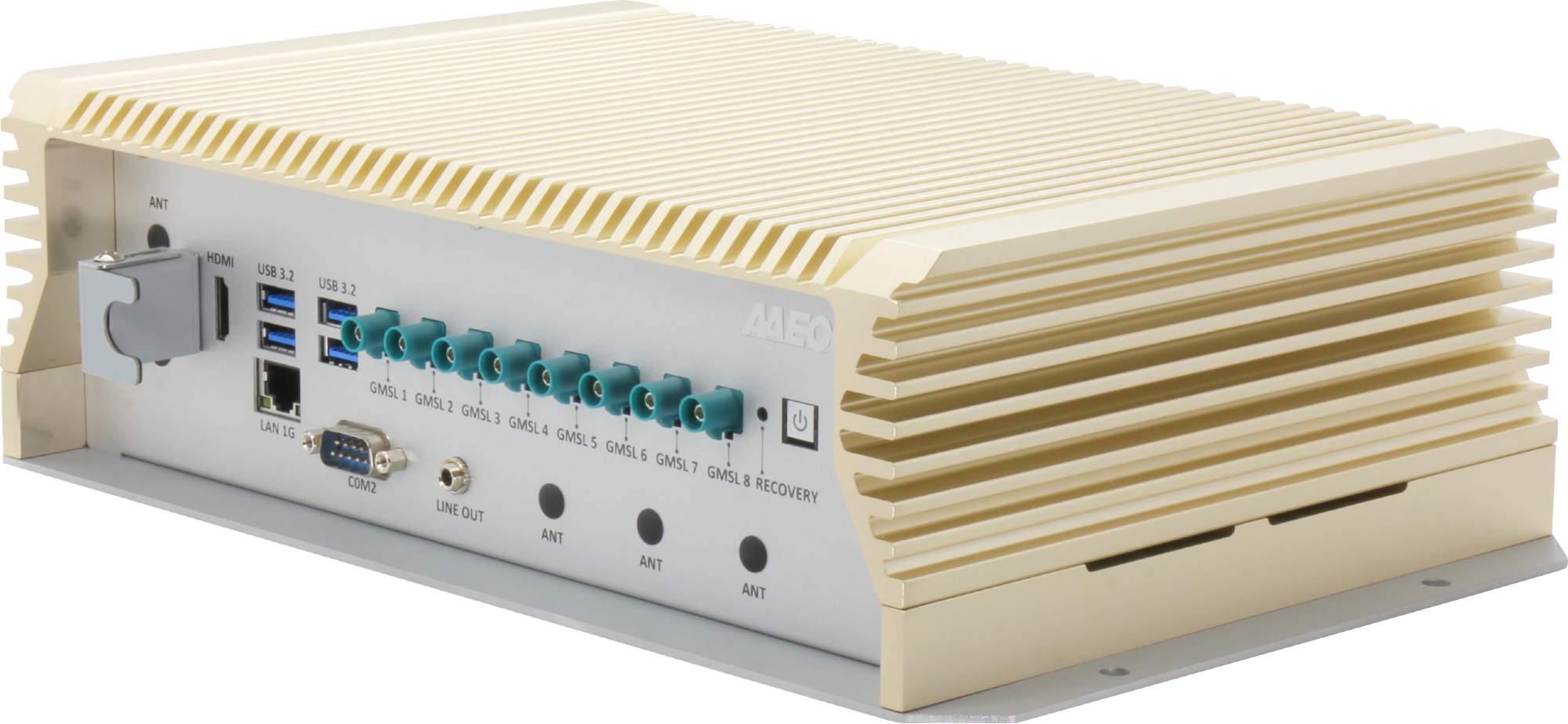

Image Credit: AAEON
The BOXER-8645AI, which is powered by the NVIDIA® Jetson AGX Orin™ module, introduces the GMSL2 interface to the BOXER series, equipped with FAKRA connectors to enable up to eight GMSL2 connections for high-speed and wide-bandwidth video transmission.
Partnering with AAEON to provide high-quality peripheral hardware compatible with the BOXER-8645AI is e-con Systems™, a company at the forefront of designing, developing, and manufacturing custom and off-the-shelf camera solutions. As part of the collaboration between the two, the compatibility of e-con Systems’ NileCAM25 Full HD global shutter GMSL2 color camera has been certified to provide full HD resolution with synced images and a latency of 1 millisecond when installed on the BOXER-8645AI.
With the addition of the GMSL2 interface alongside the trusted quality of e-con Systems peripheral hardware, the BOXER-8645AI can achieve extremely low-latency video transmission and increase its inferencing accuracy across a distance of 15 meters. It should be noted that the benefits of this addition are augmented by the system’s NVMe support, which comes via an M.2 2280 M-Key, producing higher data transfer rates and multitasking capabilities for applications dedicated to surveillance, retail, and factory automation.
Notably, the BOXER-8645AI is E-Mark certified and has 9-Axis sensor and GNSS support, which gives credence to its potential use in the AMR sphere. Also conducive to this application field is its broad communication protocol support, which includes a total of four DB-9 ports for isolated CANBus, digital I/O, and two RS-232 (Rx/Tx/CTS/RTS)/RS-485 connections.
Peripheral device support comes in the form of both 10G LAN and GbE LAN interfaces via RJ-45 ports, with the option of adding a further eight GbE LAN ports. Further wired connectivity is available via four USB 3.2 Gen 2 ports, one HDMI 2.0 display output.
As has become standard for AAEON’s AI system range, the BOXER-8645AI offers an M.2 2230 E-Key and M.2 3052 B-Key to give users the option of Wi-Fi and LTE module installation, respectively. Meanwhile, the BOXER-8645AI’s NVMe storage capacity is joined by up to 64GB of eMMC onboard and two 2.5” SATA drives.
In terms of mechanical features, the BOXER-8645AI is built to be incredibly durable. For use in large vehicles such as buses, law enforcement units, or armored cars, the BOXER-8645AI has a wide 9 V to 36 V power input range with ignition delay on/off function, alongside MIL-STD-810G standard tolerance to shock and vibration.
Able to operate in harsh environmental conditions, the BOXER-8645AI also boasts a wide temperature range of -25 °C to 65 °C and is E-Mark certified.
“At AAEON we have a philosophy of continual improvement, and this involves not only providing our customers with solutions that feature the most advanced NVIDIA GPU architecture, but also design innovation that grants them features through which to unlock greater potential in their respective markets,” said Alex Hsueh, Associate Vice President of AAEON’s Smart Platform Division. “We recognized the benefits that incorporating GMSL2 technology could bring to the in-vehicle market, and have an established relationship that gives us confidence in the quality of e-con Systems’ products, so we are eager to see how the BOXER-8645AI, in conjunction with the NileCAM25, can help our customers to improve upon the solutions currently available.”
"We are thrilled to partner with AAEON to enhance the BOXER-8645AI with our full range of GMSL cameras. This collaboration highlights our GMSL camera portfolio's compatibility with AAEON's cutting-edge platform. It also showcases e-con Systems' ability to deliver synchronized, low-latency HD imaging solutions that are a game-changer for indoor and outdoor autonomous mobility applications, agricultural vehicles, smart traffic management etc. Our joint efforts with AAEON are set to redefine industry standards, providing customers with advanced video transmission capabilities and improved inferencing accuracy, necessary for high-performance computing tasks at greater distances," said Gomathi Sankar, Head of Industrial Business Unit at e-con Systems.
AAEON is an industrial AI hardware pioneer with a rich history of providing solutions for AI computing at the edge that feature the NVIDIA Jetson platform, as illustrated by its status as an Elite member of the NVIDIA Partner Network.
The BOXER-8645AI is now in mass production and available on the eShop, while further pricing information and customization options are available through AAEON’s contact form.
For more information about the BOXER-8645AI, please visit its product page on the AAEON website.
